S3 Replication

Steps to configure the S3 replication service to replicate files from one bucket to another in different accounts.

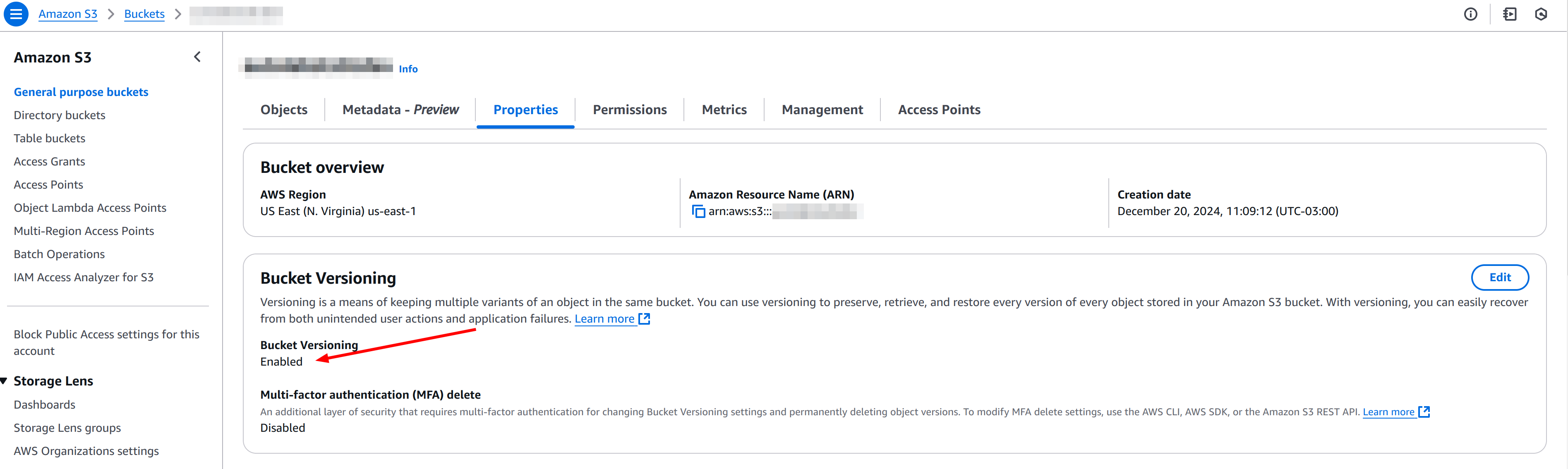

As a requirement, versioning must be active in both buckets.

s3

1. Create IAM Role in the account where the source bucket is located​

Trust Policy​

You need a trust policy that allows the S3 service to assume the role:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "s3.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

Permissions Policy​

A permissions policy that allows:

  • Read objects and metadata from the source bucket (Account A).
  • Put objects in the destination bucket (Account B).
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "ReadSourceBucket",
      "Effect": "Allow",
      "Action": [
        "s3:GetObject",
        "s3:GetObjectAcl",
        "s3:GetObjectVersion",
        "s3:GetObjectVersionAcl"
      ],
      "Resource": "arn:aws:s3:::<SOURCE_BUCKET_NAME>/*"
    },
    {
      "Sid": "WriteDestBucket",
      "Effect": "Allow",
      "Action": [
        "s3:PutObject",
        "s3:PutObjectAcl",
        "s3:ReplicateObject",
        "s3:ReplicateDelete",
        "s3:ReplicateTags",
        "s3:GetObjectVersionTagging",
        "s3:PutObjectVersionTagging"
      ],
      "Resource": "arn:aws:s3:::<DESTINATION_BUCKET_NAME>/*"
    }
  ]
}

2. Add policy to the destination bucket​

In the destination bucket details, go to the permissions tab and add the following policy:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Sid": "AllowReplicationFromAccountA",
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::<ACCOUNT_A_ID>:role/<ROLE_NAME>"
      },
      "Action": [
        "s3:PutObject",
        "s3:PutObjectAcl",
        "s3:ReplicateObject",
        "s3:ReplicateDelete",
        "s3:ReplicateTags"
      ],
      "Resource": ["arn:aws:s3:::<DESTINATION_BUCKET_NAME>/*"]
    }
  ]
}

3. Configure the replication rule in the source bucket​

  • In the source bucket details, go to the "Management" (or "Properties" depending on console version) tab and look for the Replication section.
  • Create a new replication rule and define:
    • Rule name: A descriptive name.
    • Status: Enabled.
    • Source bucket: The current bucket (already selected).
    • Prefix/Filter: You can choose to replicate the entire bucket or only a specific prefix.
    • Destination:
      • Bucket: specify the ARN of the destination bucket in Account B.
    • IAM role: choose the role you created in the first step, which allows replication.

Optional​

  • If the "Transfer to destination bucket owner" option is activated, the action must be added to both AllowReplicationFromAccountA (destination bucket policy) and WriteDestBucket (IAM role): "s3:ObjectOwnerOverrideToBucketOwner"

Ways to copy existing files​

There are 3 different ways to copy existing files from the bucket:

1. Do it along with replication​

When activating replication, it gives you an option to copy all existing files.

2. Use the S3 migration option provided by Sleakops​

In the detail of the S3 type dependency, you can find this function that guides you step by step on what needs to be done.

s3-2

3. Use the Batch Operation service​

Once the replication rule is created, following these guides:

Add to the S3ReplicationRolePolicy the following actions:

  • "s3:PutObjectTagging" to "Sid": "WriteDestBucket"
  • "s3:GetObjectTagging" and "s3:ListBucket" to "Sid": "ReadSourceBucket"
{
  "Sid": "ReadReportBucket",
  "Effect": "Allow",
  "Action": ["s3:GetObject", "s3:GetObjectVersion"],
  "Resource": ["arn:aws:s3:::bucket-reports/*"]
}

And add the "s3:InitiateReplication" permission to both WriteDestBucket and SourceBucket.
